Refactoring My Infrastructure As Code Configurations

  |   |  13 minutes  |  2678 words
Refactoring My Infrastructure As Code Configurations
Blocks, building blocks everywhere

The drupol/nixos-x260 repository began as a simple and practical way to manage the configuration of my Lenovo ThinkPad X260 laptop, hence the (bad) name. Unsurprisingly, I quickly became hooked on the NixOS Linux distribution, and before long, I was running it on every machine I owned… first at home, then even at work (shhht!). As the obsession grew, so did the project. It naturally expanded to support a wide variety of systems: from a simple Intel-based laptop, to a Raspberry Pi router tucked away in the basement, and even an old iMac from 2012. Each machine came with its own quirks and specific requirements. Like many personal setups, what started as a clean and elegant solution gradually evolved into a tangled web of host-specific hacks and duplicated logic.

For a long time, I kept postponing a proper rewrite, procrastinating “like a boss”. I was daunted by the scale of the work and, frankly, didn’t yet have a clear vision (or the knowledge?) to pull it off. The ideas I had in mind were just out of reach.

But eventually, the moment came. I decided to start over. From scratch. No more excuses.

The Case for Declarative Infrastructure

Source: Dellaiera, P. (2024). Reproducibility in Software Engineering. https://doi.org/10.5281/zenodo.12666898

Source: Dellaiera, P. (2024). Reproducibility in Software Engineering. https://doi.org/10.5281/zenodo.12666898

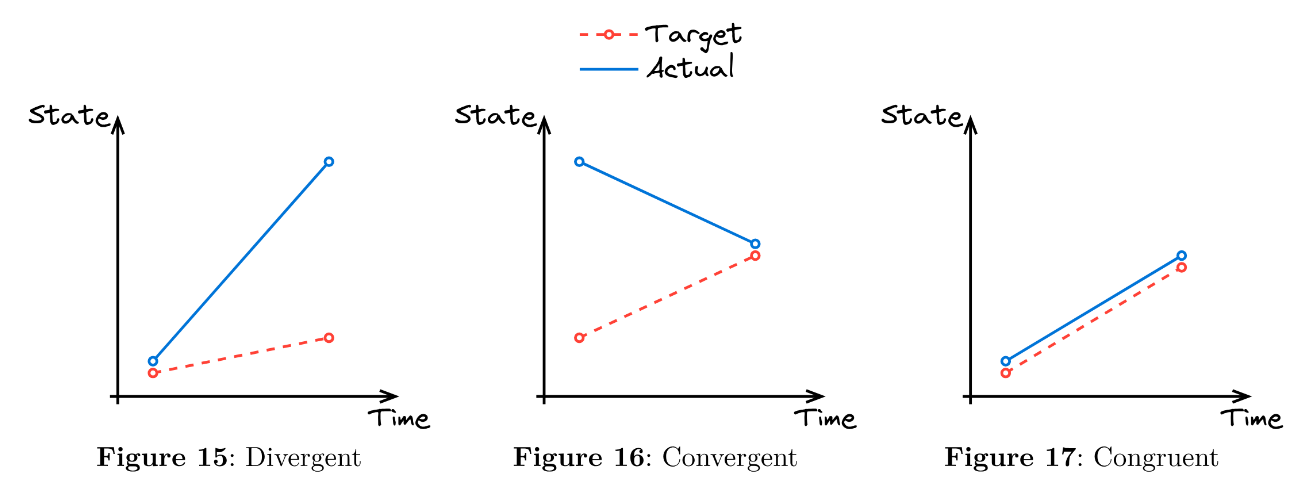

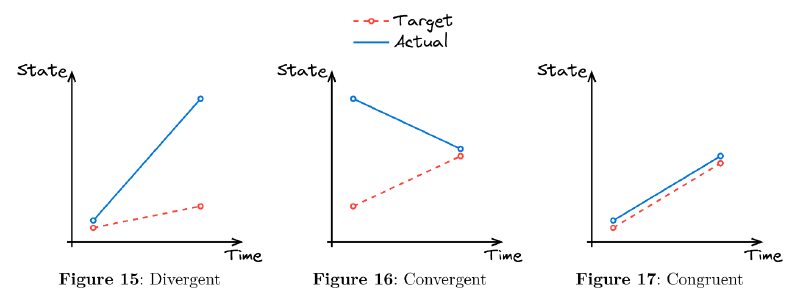

When it comes to managing systems at scale, not all approaches are created equal. Over time, three primary models of configuration management have emerged. Each of them with their strengths, limitations, and implications for reproducibility and maintainability.

Divergent Configuration Management

This is the most traditional and error-prone approach (illustrated in Figure 15). Systems are configured manually by individuals, leading to configuration drift as changes accumulate over time without central oversight. What starts as a uniform setup quickly turns into a collection of inconsistently configured machines, each with its own quirks and undocumented changes. Reproducing these environments becomes nearly impossible, and unpredictability becomes the norm.

Convergent Configuration Management

In this model illustrated in Figure 16, tools like Ansible, Puppet, or Terraform aim to bring systems back into alignment with a desired state. While this improves consistency, it rarely guarantees it. Machines may “converge” towards a shared configuration, but subtle variations and feedback loops can persist. It is an improvement over divergence, but not a cure for non-determinism.

Congruent Configuration Management

This is the strictest and most reproducible model (illustrated in Figure 17). Systems are declared immutably, and their configurations are enforced to be identical from the outset. Drift is prevented rather than corrected. This is the philosophy behind tools like Nix and Guix, which aim to provide deterministic, declarative environments that can be reliably rebuilt and reproduced. While congruent systems can be less flexible for rapidly-changing needs, they offer unmatched confidence in consistency and reproducibility.

So now you might wonder why go through all this trouble, why maintain a repository just to manage a few personal machines? The answer is simple: consistency, reproducibility, and peace of mind. With NixOS, every machine is configured declaratively, from A to Z, meaning I describe the desired state, and Nix ensures it gets there, reliably and repeatably, following a congruent configuration model.

Unlike traditional Linux distributions where system configuration often involves manual tweaks and hard-to-track changes (Divergent model, Figure 15), NixOS treats everything as code. This allows me to:

  • Roll back broken changes instantly
  • Rebuild any machine from scratch with a single command
  • Share and reuse configuration across machines
  • Track every change in version control
  • Avoid “it works on my machine” problems entirely

This repository isn’t just a bunch of “dotfiles”, it is the source of truth for my infrastructure. Whether it is a laptop, a desktop, or a headless server aggregating the dust in the basement, I know exactly how it is configured, what services it runs, and how to reproduce it elsewhere.

Why Start Over?

As the number of machines grew, maintaining host-centric configurations quickly became insufficient. Each host had its own folder, its own system and home files, and often its own bespoke logic, even when the underlying requirements were identical. Structuring everything hierarchically through folders seemed like a good idea at first, but it soon became a burden. This approach simply did not scale. Adding a new machine or tweaking a shared setting meant copy-pasting or rewriting the same patterns, and I hate repeating code. In fact, repetition in any programming language is often a symptom of poor design.

More fundamentally, the original structure was organised around where things applied (e.g. imac, router, x280, x13) rather than what they did (e.g. desktop, dev, vpn, ssh, ai, virtualisation). This design decision had long-term implications, limiting modularity and reusability across the configuration.

Goals for the Rewrite

  • Modularisation: Create features organised by functionality rather than by host

    I want to be able to define features once and reuse them across different machines. This will make it easier to maintain the configuration and reduce duplication. The idea is to group configuration files by their purpose, and not by the machine they apply to. This will make it easier to share and reuse code across different machines.

  • Automatisation: The loading of modules and configuration files

    Enough of dealing with manual file imports, I want to avoid manual loading of modules and configuration files. The system should automatically discover and load everything it needs dynamically.

  • Consistency: Embrace a declarative and consistent approach to both NixOS and Home Manager

    I want to be able to declare my system and user configurations in a consistent way, using the same patterns and conventions across both NixOS and Home Manager. This will make it easier to understand and maintain the configuration.

  • Standardisation: Modules can be reused across machines and configurations

    I want each module to be independent blocks, reusable across different machines and configurations. This will reduce code duplication and facilitate the maintenance.

  • Maintainability: Facilitate the onboarding of new systems and their maintenance

    I want to make it simple to add new systems and maintain existing ones. This means reducing overall complexity, improving readability, and making it easier to understand how everything fits together.

What Changed?

The pull request that introduced this change is a bit of a monster, but it had to be. The massive diff is largely due to the introduction of NixOS Facter and the inclusion of facter.json files. The large number of files is also a result of splitting the configuration into smaller, more focused modules living in their own files.

Some parts of the old codebase still need to be migrated. I have temporarily moved them into a _to_migrate directory and plan to refactor them gradually. Migration is tedious and slow. One of the reason is that I need to generate the facter.json files on each machine while it is running. A few systems, like the Raspberry Pi router I had, have since been decommissioned, so I no longer have access to it… but I still want to keep the configuration around, just in case.

Flipping the Configuration Matrix

The new version adopts a fundamentally different approach: the configuration is now structured around features, not hostnames. It is a shift in the axis of composition, essentially an inversion of configuration control. What may seem like a subtle change at first has profound implications for flexibility, reuse, and maintainability.

->

Instead of asking “what does the <insert-machine-name-here> need?”, I now ask “which features does this machine require?”

This shift enables:

  • A feature like desktop support, VPN, SSH, or AI services to be implemented once as a reusable module
  • All modules to live under a unified modules/ directory, loaded automatically, once, no manual glue logic
  • System declarations can possibly remain per host like the previous pattern, but most logic is now shared, reused, and easily maintained

How It Works

This project is built using flake.parts, a modular and composable framework for structuring Nix flakes. Unlike traditional monolithic flake setups, flake.parts allows me to break down the configuration into logical, reusable parts, each focused on a specific concern (e.g., formatting, NixOS modules, Home Manager modules). This keeps the flake configuration clean and scalable, and more importantly, promotes maintainability, extensibility, and collaboration.

The first step is enabling the modules feature in flake.parts, which allows you to define and aggregate modular custom configurations.

I define two types of modules:

  • nixos modules for system-level configuration, for NixOS machines only
  • homeManager modules for user-level configuration, for NixOS machines, but not only, could be applied to any machine running Home Manager

Together with vic/import-tree, these modules are automatically discovered and loaded. They are then aggregated by flake.parts into a single attribute set, which is used to build the final configuration.

For example, here is a custom flake.parts module. It defines the fonts configuration for both the dev and desktop features. No Home Manager configuration is defined here.

{
  flake.modules = {
    nixos.dev =
      { pkgs, ... }:
      {
        fonts.packages = with pkgs; [
          dina-font
          monaspace
        ];
      };

    nixos.desktop =
      { pkgs, ... }:
      {
        fonts.packages = with pkgs; [
          aporetic
        ];

        fonts.fontconfig = {
          defaultFonts = {
            monospace = [ "Aporetic Sans Mono" ];
            sansSerif = [ "Aporetic Sans Mono" ];
            serif = [ "Aporetic Sans Mono" ];
          };
        };
      };
  };
}

In the next example module, the module defines the dev and desktop Home Manager features. It does not define any NixOS configuration.

{
  flake.modules = {
    homeManager.dev =
      { pkgs, ... }:
      {
        home.packages = with pkgs; [
          go
          php
          python3
          rustc
        ];
      };

    homeManager.desktop = {
      programs.firefox.enable = true;
    };
  };
}

Once in the modules/ directory, these modules are automatically picked up by vic/import-tree in the main flake.nix file:

{
  description = "My Nix infrastructure at home";

  inputs = {
    #...
  };

  outputs = inputs: inputs.flake-parts.lib.mkFlake { inherit inputs; } (inputs.import-tree ./modules);
}

Note: This is the only place where import-tree is used !

The aggregated files are then merged into config.flake.modules.nixos by flake.parts, thanks to its built-in modules feature`. This merged configuration is ultimately used to build the NixOS configurations, a core capability enabled by Nix flakes.

{
  inputs,
  lib,
  config,
  ...
}:
let
  prefix = "nixosConfigurations/";
in
{
  flake.nixosConfigurations = lib.pipe (config.flake.modules.nixos or { }) [
    (lib.filterAttrs (name: _: lib.hasPrefix prefix name))
    (lib.mapAttrs (
      name:
      let
        hostname = lib.removePrefix prefix name;
      in
      {
        name = hostname;
        value = inputs.nixpkgs.lib.nixosSystem {
          modules = [ config.flake.modules.nixos.${hostname} ];
        };
      }
    ))
  ];
}

Importantly, the file that declares this logic is itself also a flake.parts module! Every file in the project becomes a reusable building block, regardless of its location or filename. One of the major advantages of this approach is that it enables the definition of multiple configurations within the same file. I can now declare both NixOS and Home Manager modules side by side, and they will be automatically discovered and loaded without additional wiring. Although I do not currently take full advantage of this, the flexibility is built-in and could prove valuable in future scenarios.

To go one step further, it would be ideal to define a list of features for each machine and have both the system and home configurations automatically assemble themselves accordingly. Look no further ! This is precisely the role of the custom loadNixosAndHmModuleForUser function built for this project.

{
  inputs,
  ...
}:
{
  flake.lib = {
    loadNixosAndHmModuleForUser =
      config: modules: username:
      assert builtins.isAttrs config;
      assert builtins.isList modules;
      assert builtins.isString username;
      {
        imports = (builtins.map (module: config.flake.modules.nixos.${module} or { }) modules) ++ [
          {
            imports = [
              inputs.home-manager.nixosModules.home-manager
            ];

            home-manager.users.${username}.imports = [
              (
                { osConfig, ... }:
                {
                  home.stateVersion = osConfig.system.stateVersion;
                }
              )
            ] ++ builtins.map (module: config.flake.modules.homeManager.${module} or { }) modules;
          }
        ];
      };
  };
}

Finally, a host machine can declare its configuration as such:

{
  config,
  ...
}:
let
  modules = [
    "base"
    "x13"
    "bluetooth"
    "desktop"
    "dev"
    "displaylink"
    "games"
    "git"
    "sound"
    "vpn"
    "virtualisation"
  ];
in
{
  flake.modules.nixos."nixosConfigurations/x13" =
    config.flake.lib.loadNixosAndHmModuleForUser config modules
      "pol";
}

And voila!

The same pattern has been also successfully applied to another project of I did at work ecphp/devs-profile, a project offering user profiles, each packed with command-line programs and configurations designed specifically for developers. Perhaps I will write a blog post about it one day, but for now, I am happy to share that the same modular approach has been successfully applied there as well.

Lessons Learned

The biggest challenge in this rewrite was learning to organise modules by purpose rather than by name. It required unlearning the reflex to group files by machine. Instead, everything is now named for what it does: desktop, networking, shell, media, ai, and so on.

This turns the repository into a toolkit. Each feature simply declares where it should be applied. Each module is a building block that can be combined with others to create one or multiple custom configurations in the same files or spread across multiple files.

Trade-Offs

  • Steeper learning curve

    Even after contributing to the flake.parts framework through a module, it took me a while to fully grasp how flake.parts works, not just in terms of its syntax, but also in understanding how the pieces fit together to build a clean and extensible structure. It is definitely the best Flake framework and it is simply out of this world! The power it offers is undeniable, but it requires a mindset shift and a solid understanding of the underlying model.

  • Ongoing and time-consuming migration

    Migrating the existing host-centric setup to the new functionally-driven model has been a slow and occasionally painful process. Not everything has been ported yet, and some machines are still waiting for their facter.json files to be generated. I am progressing gradually as I need those systems, but it is definitely a long-term effort.

Future Work

  1. Continue maintaining and refining the repository

    While the new structure represents a significant improvement, I am not yet fully satisfied with it. There is still work to be done, particularly around completing the migration of older configurations to the new modular model. I have several ideas in mind for improvements, but they will require time and careful implementation.

  2. Simplify the user interface for defining a host machine

    The current interface for defining a host machine is still a bit clunky, relying on a custom function (loadNixosAndHmModuleForUser). I would like to simplify it further, making it easier to define a machine and its features. This could involve creating a more user-friendly syntax or abstraction layer that hides some of the complexity of the underlying implementation.

  3. Expose Home Manager configurations for composability

    One area I would like to explore further is how to expose individual Home Manager modules so they can be composed into reusable profiles. This would allow for the creation of more complex, user-specific setups without duplicating code. Each module should be exposed through the flake interface, enabling profile-based composition. I know it is technically possible, but I haven’t yet figured out the right approach. This definitely warrants deeper investigation.

  4. Create a Nix starter template to help newcomers to adopt this approach.

    I would like to build a lightweight, beginner-friendly template to help others adopt this modular approach to managing NixOS and Home Manager configurations. The goal is to offer a clean starting point that does not overwhelm new users, while promoting good practices and reducing the learning curve. It is a small contribution that could have a meaningful impact for those just getting started.

  5. Rename the project

    The current name drupol/nixos-x260 no longer reflects the scope or intent of the repository. It originated with my Lenovo ThinkPad X260, but the project has evolved far beyond a single machine. I would like to choose a name that better represents its purpose.

Inspiration

I would like to thank Shahar “Dawn” Or (mightyiam) for pioneering this approach. My repository is inspired by his work.

Conclusion

This rewrite brings the project into a new era. It is cleaner, more scalable, and far easier to extend. Shifting from a naming-based layout to a functionality-oriented one has made a world of difference.

Feel free to suggest improvements or ideas. I am always open to suggestions and would love to hear your thoughts on this project. The project drupol/nixos-x260 is open-source and available on GitHub, so feel free to check it out and contribute if you want.
